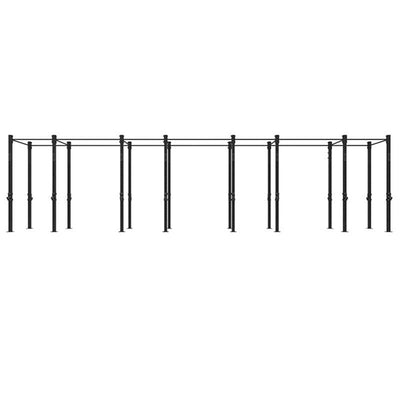

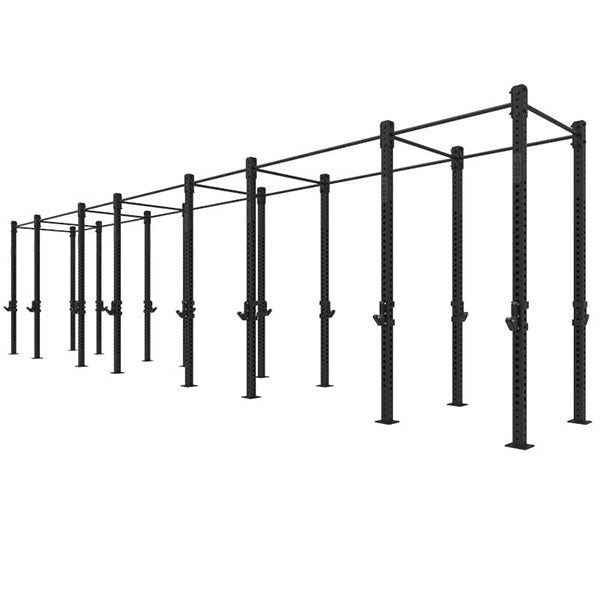

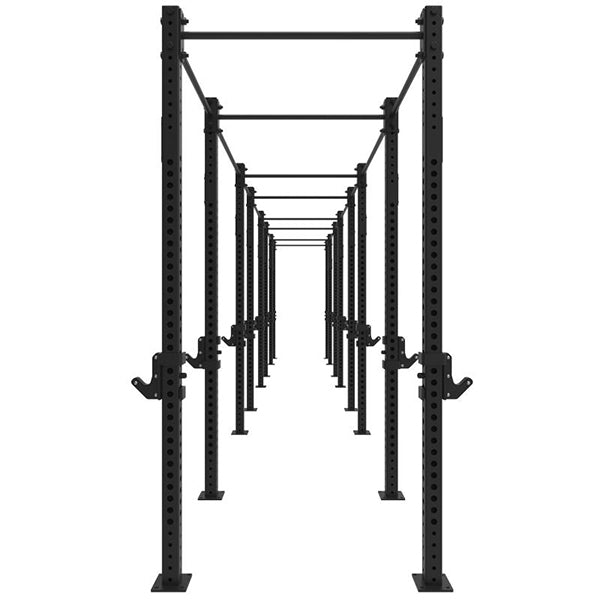

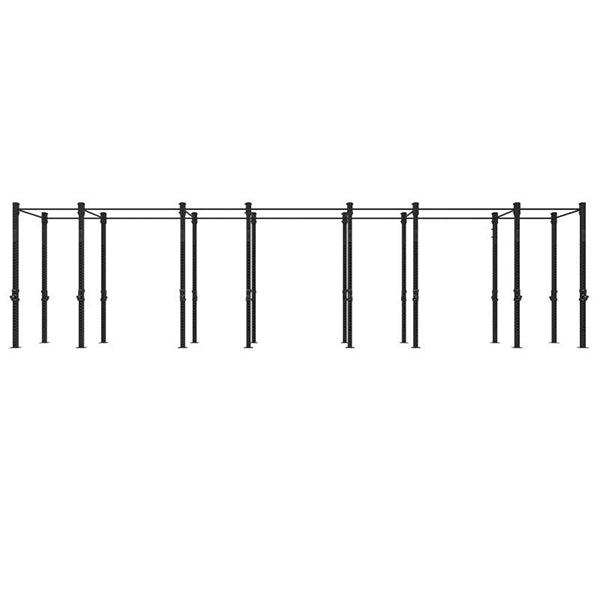

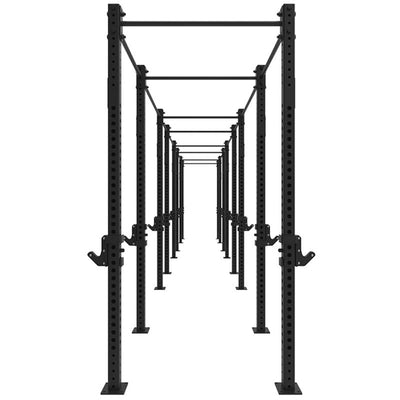

1RM Quad Free Standing Rig with 8 lifting cells.
Every component from the 1RM Rig system is CAD designed, laser cut and robot welded to ensure you’ll get the quality you need for your space – whether a ten cell fitout, or a single cell for home, and with three different height uprights, heavy duty custom j-hooks and spotters, 4 styles of chin-up bars and over 25 accessories to choose from – you’re sure to find a configuration to suit.
The system is fully modular - meaning that you can start with one cell and add to this over time as your needs change. There are countless configurations you can build and customise to suit your space, budget & training requirements.

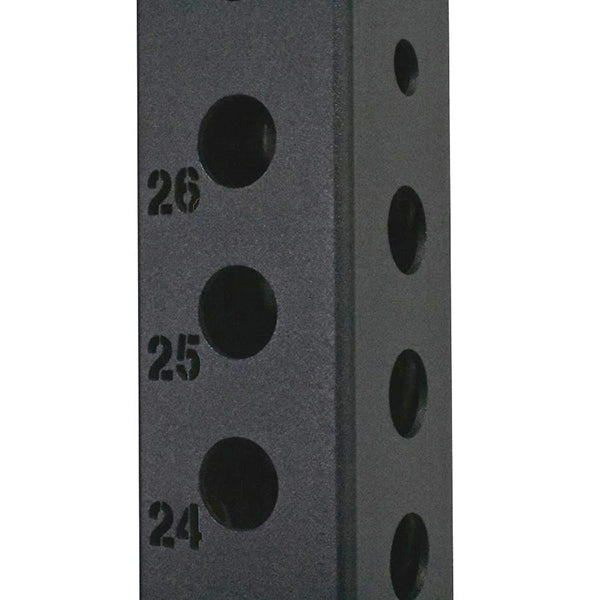

- 75x75mm, 11 gauge (3mm) steel
- 10mm endplates
- 5mm thick rod Chin-up Bars
- Over 25 accessories
- Free Standing, Wall mounted, Braced and Unbraced
- Unlimited customisation options.
Included in this system is:
- 16 x 2510mm 75mmx75mmx3mm uprights
- 16 x short chin bar (1062mm)
- 6 x long chin bar (1676mm)
- 8 x PAIR PRO j-hooks
- All bolts (excluding bolts required to mount to floor/wall)
- Length: 1212mm
- Width: 9876mm
- Height: 2510mm
Looking for accessories for your rig?
Add using the tick boxes above, or browse our accessories page. If you can’t find what you’re after, need a different or custom configuration, installation or would just like to chat about the best rig configuration for you, give us a ring on 03 9462 3943 or email us at email@example.com.
Space Required. Please note you need a minimum ceiling clearance of 2.6m for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead for barbell work and bar muscle ups. Allow at least 1m clearance either side for comfortable access when changing barbell plates.
Installation. This 1RM rig systems require the uprights to be mounted to the floor, and the chin-up bars / crossmembers to be mounted to a wall. The uprights can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each upright requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.
