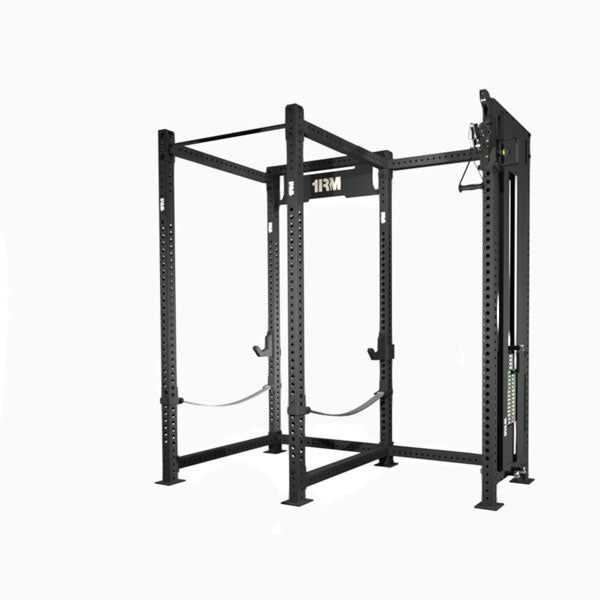

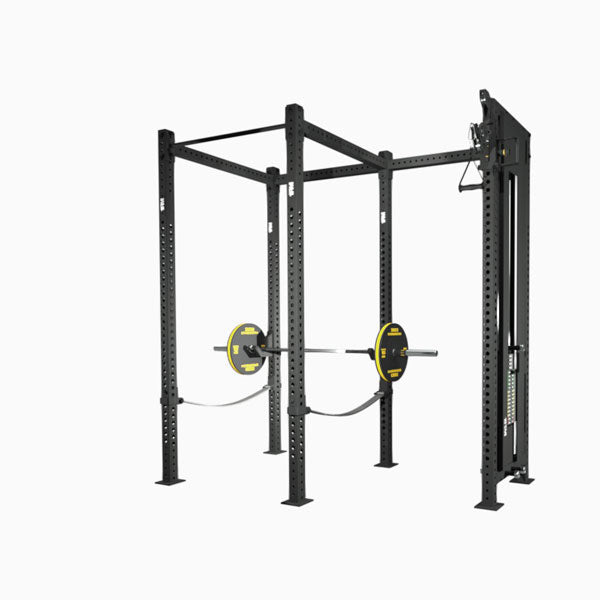

1RM Obsidian Power Rack with Offset Ebony Cable Machine

1RM SKU: 1RM-PC-CAB
1RM Obsidian Power Rack with Offset Ebony Cable Machine
1RM Obsidian Power Rack with Offset Ebony Cable Machine

1RM Obsidian Power Rack with Offset Ebony Cable Machine

1RM SKU: 1RM-PC-CAB
Regular price $4,299.00
/
  • Full Power Rack and Single Cable Upright
  • 75x75mm uprights w laser cut numbers and 10mm footplates
  • 32mm chin-up bar w 8mm end plates
  • 1 x pair Premium j-hooks
  • 1 x pair slings
  • 80kg steel machined weight stack
  • 2:1 Pulley Ratio
  • One hand slider adjustment
  • Heavy-duty rated cables
  • CAD designed, laser cut & robot welded
  • Full Commercial Rating

Product Description


At the core of many sports’ strength and conditioning programs, lifting cages have become essential to nearly all strength programs. We've taken that a step further and added our best selling cable machine to our best selling power rack,

1RM are proud to offer the Obsidian Single Power Rack, a full size commercial power rack, complete with premium j-hooks and adjustable safety slings, coupled with the 1RM Ebony Single Station Cable machine with 80kg weight stack . Designed to withstand the use (and abuse) of even the busiest gyms.

Specifications:

  • 75x75mm, 11 gauge (3mm) steel uprights with laser cut numbers and 10mm foot plates
  • 5mm thick, 32mm outer diameter Chin-up Bars with 8mm end plates
  • 75x75mm, 11 gauge (3mm) steel tube crossmembers with laser cut holes and 8mm end plates
  • 1 x PAIR of j-hooks
  • 1 pair of slings rated to 2000lb
  • 80kg steel machined weight stack
    • Option to upgrade to 130kg stack
  • 2:1 Pulley Ratio
  • One hand slider adjustment
  • Heavy-duty rated cables
  • CAD designed, laser cut & robot welded
  • Full Commercial Rating
  • Total Weight: 440kg

Dimensions:

  • Width: 2424mm
  • Depth: 1287mm
  • Height: 2510mm


The Obsidian Rack

Designed for garage gyms or commercial facilities, with 11-gauge (3mm), 75mm x 75mm steel, 10mm thick foot plates on every upright and 8mm end plates on every chin bar and crossmember, this heavy duty power rack is perfect for any environment where high quality and safety is demanded - from studios, apartments, home gyms and club and school weight rooms to full function strength and conditioning facilities.

As a part of the modular 1RM range, the system is customisable to suit all needs. Upgrade from a single to a multi-grip chin-up bar, add a set of spotter arms or pin and pipe safeties to create a second external lifting area, or add dip horn to further extend the rack's functionality. If you need multiple lifting areas, combine multiple 1RM Commercial Power Racks together with our 1.68m bridging chin-up bars to build a full rig system.

At 2.51m tall, 1RM Commercial Power Rack - Single allows athletes up to 1.95m tall to perform a full overhead press while inside the cage, but the adjustable height chin-up bars ensure chin-up accessibility for all lifters. If you need more height, upgrade to 2.7m or 3.6m uprights on the front or back and create a ring station within the rack.

Specifications:

  • 75x75mm, 11 gauge (3mm) steel uprights with laser cut numbers and 10mm foot plates
  • 5mm thick, 32mm outer diameter Chin-up Bars with 8mm end plates
  • 75x75mm, 11 gauge (3mm) steel tube crossmembers with laser cut holes and 8mm end plates
  • 1 x PAIR  j-hooks
  • 1 pair of slings rated to 2000lb


The Ebony Cable Machine

The 1RM Ebony Cable machine - Rack Mounted is designed to bolt on to any 1RM Rig or Rack upright. Offering a 2:1 ratio 80kg or 130kg selectorised weight stack, with 2000lb rated tensile strength cables and sealed bearing machines aluminium pulleys, it's perfect for any environment where strength and quality are demanded.

Features include matte black textured powder coated steel frame, aircraft steel cables, and high quality machined aluminium pulley wheels. The little details also count with easy to adjust anodised aluminium pop pins, a magnetic selector pin with spring cables and band pegs for adding those incremental gains.

With the top four weight plates weighing 2.5kg, and the remaining plates weighing 5kg, it's suitable for all lifters from beginner to experienced.

This machine is also available as a wall mounted system, or free standing, stand alone machine or can be combined with other pieces from the 1RM Rig range to create a functional trainer rack, cable crossover machine, multi-function trainer and storage system or anything else you can dream up.

Features

  • 80kg steel machined weight stack
    • Upgradable to 130kg
  • 2:1 Pulley Ratio
  • Heavy-duty rated cables
  • Sealed bearing machined aluminium pulleys
  • Magnetic selector pin with spring cable
  • Band Peg attachments
  • Lat pulldown and seated row attachments included
  • Some assembly required


Other Considerations:

Space Required. Please note you need a minimum ceiling clearance of 2.6m for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead for barbell work and bar muscle ups. Allow at least 1m clearance either side for comfortable access when changing barbell plates.

Installation. The 1RM system can be, but does not need to be mounted to the floor. If you prefer to floor mount it, the uprights can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each upright requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring. All bolts required to attach uprights to chin-up bars, crossmembers and other accessories are included.

1RM Systems

Every component from the 1RM System is CAD designed, laser cut and robot welded to ensure you’ll get the quality you need for your space – whether a single cell, a power cage or a ten cell fitout. With three different height uprights, heavy duty custom j-hooks and spotters, 4 styles of chin-up bars and over 25 accessories to choose from – you’re sure to find a configuration to suit.

The system is fully modular – meaning that you can start with one cell and add to this over time as your needs change. There are countless configurations you can build and customise to suit your space, budget & training requirements.

Need More?

If you're looking for accessories, try our accessories page. If you can’t find what you’re after, need a different or custom configuration, installation or would just like to chat about the best configuration for you, give us a ring on 03 9462 3943 or email us at info@littleblokefitness.com.au.
