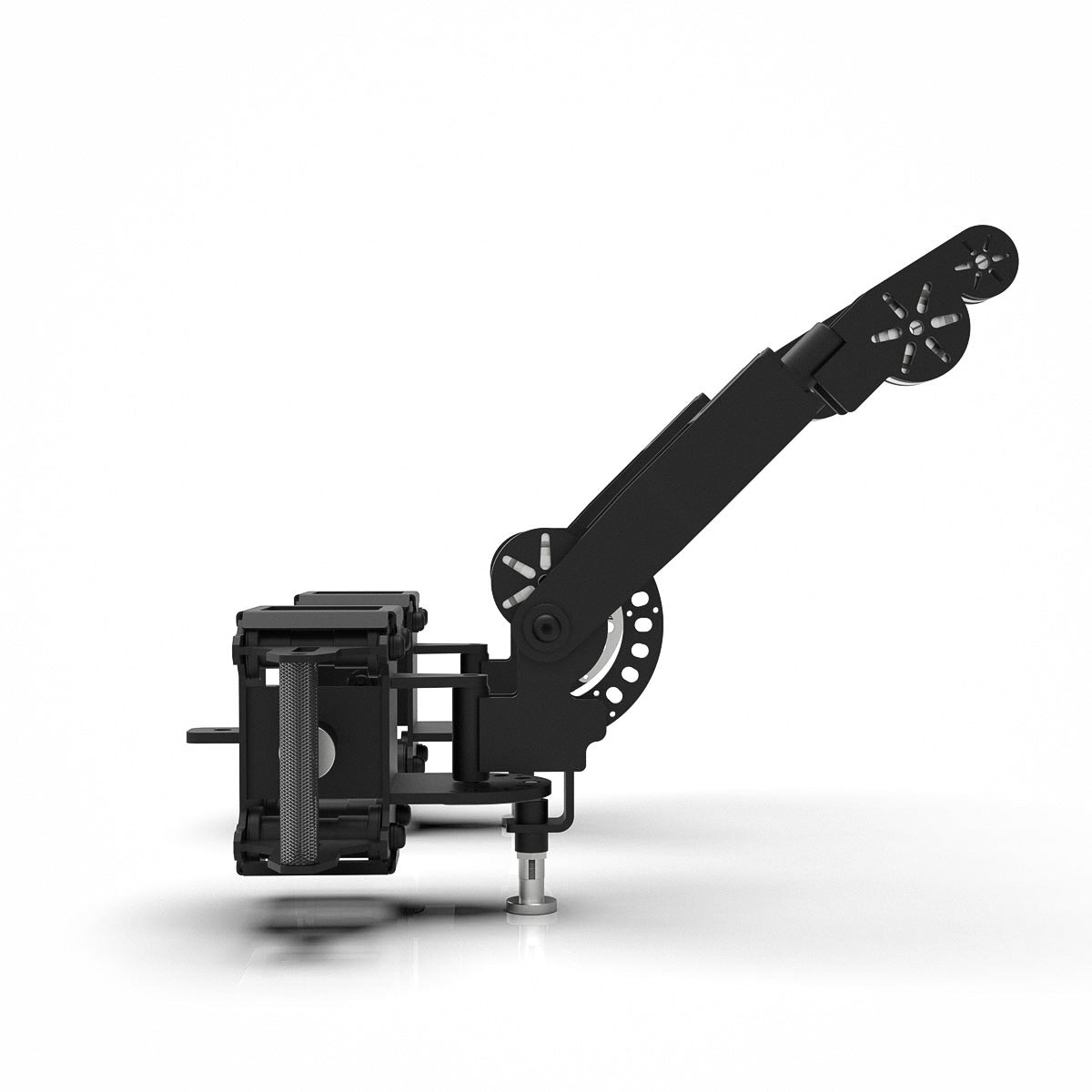

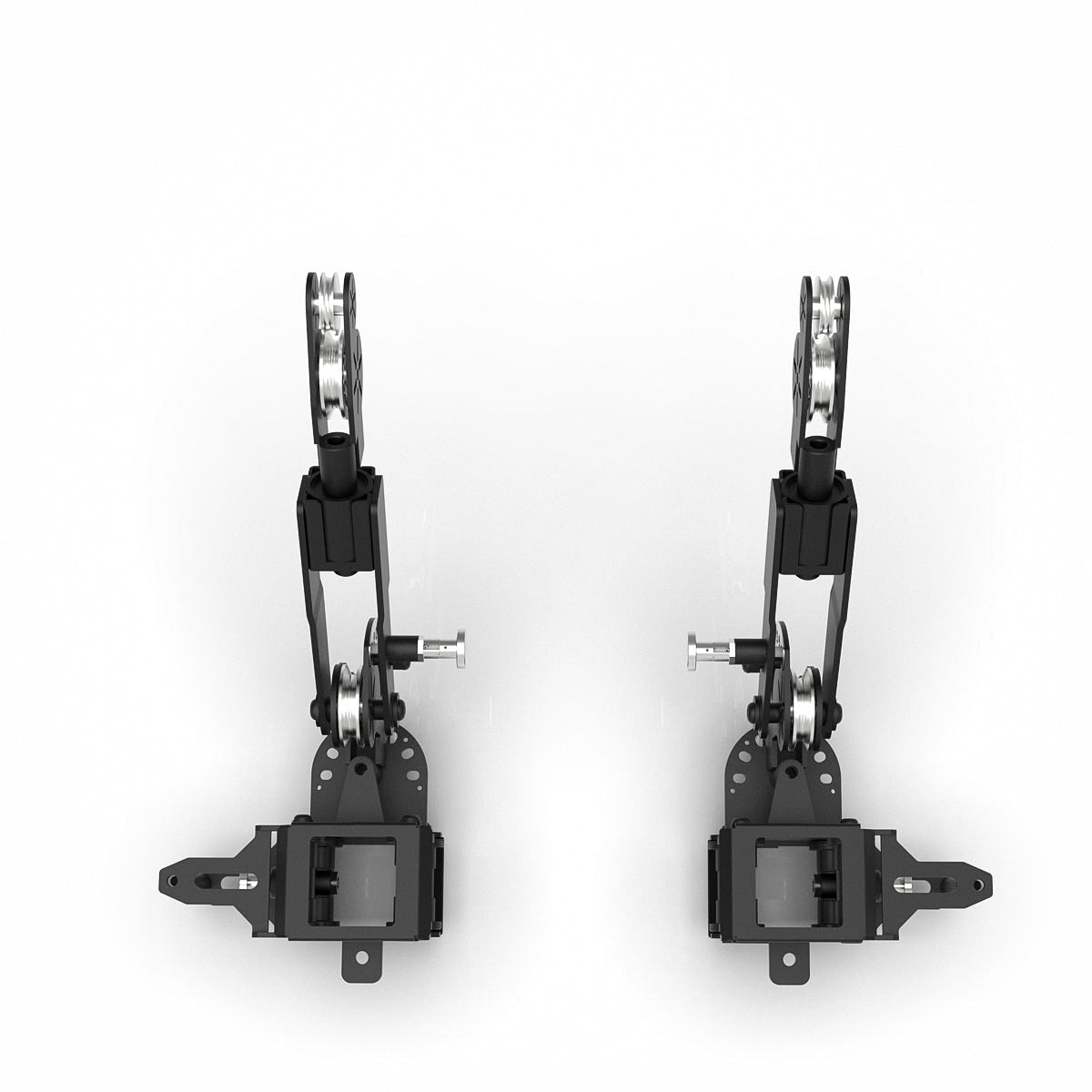

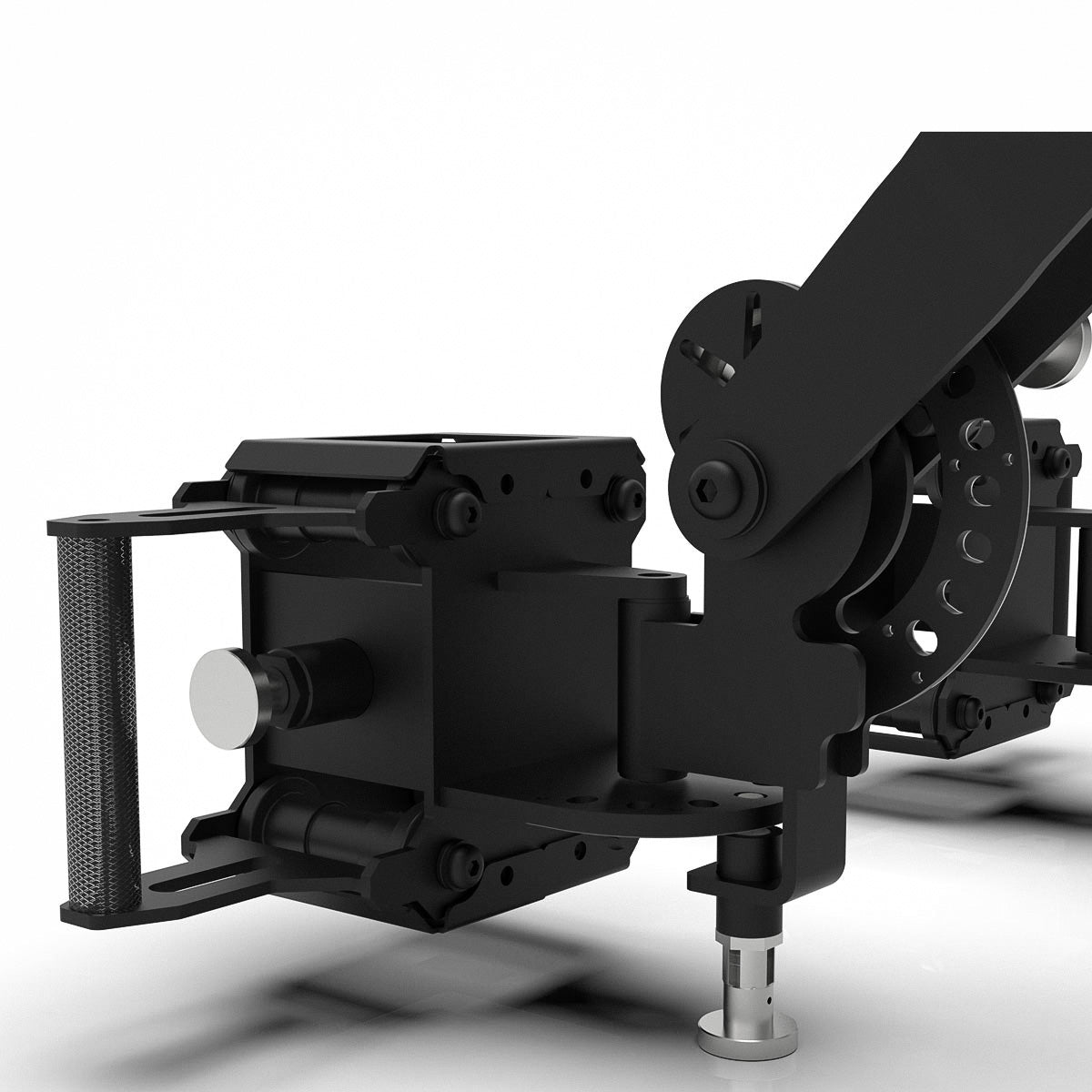

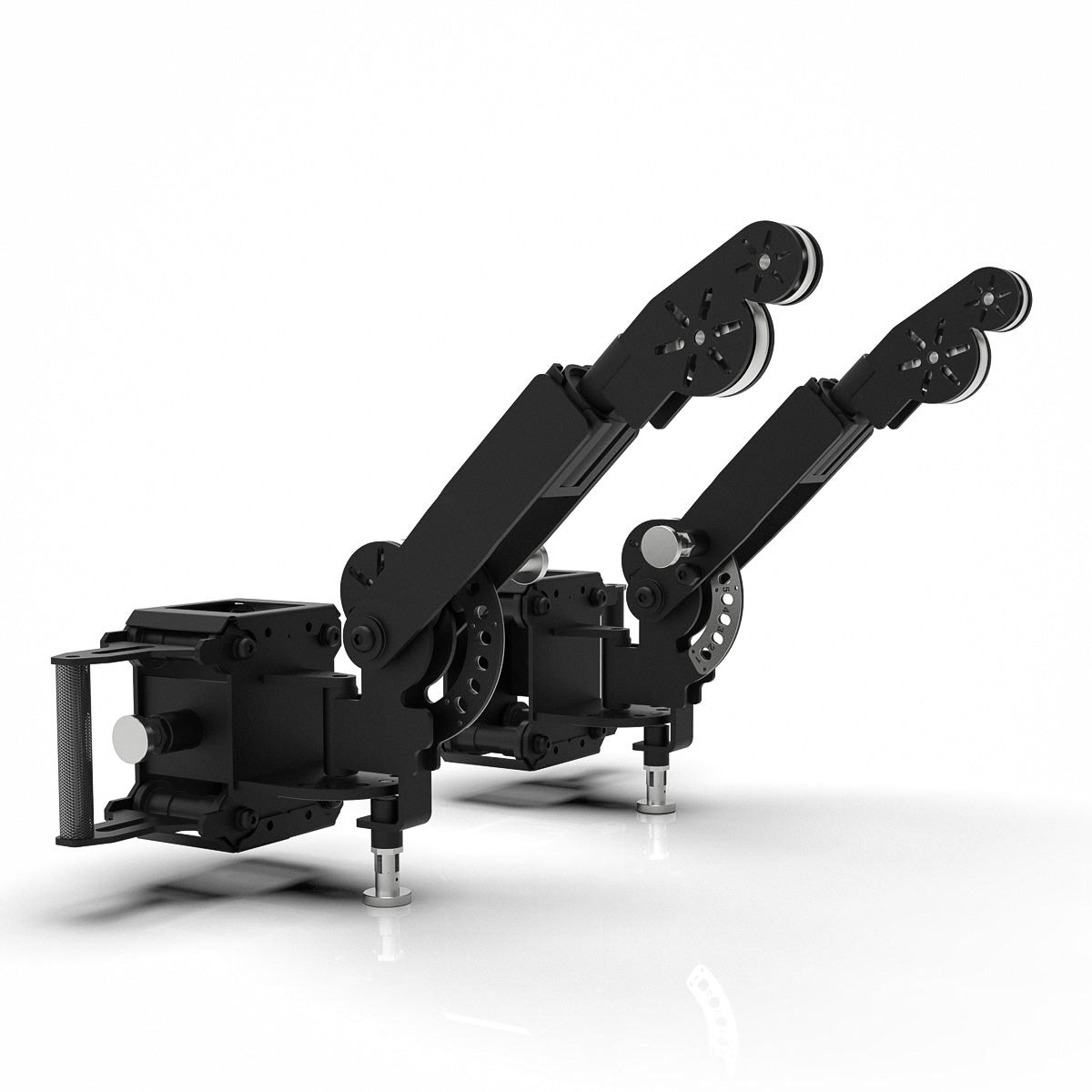

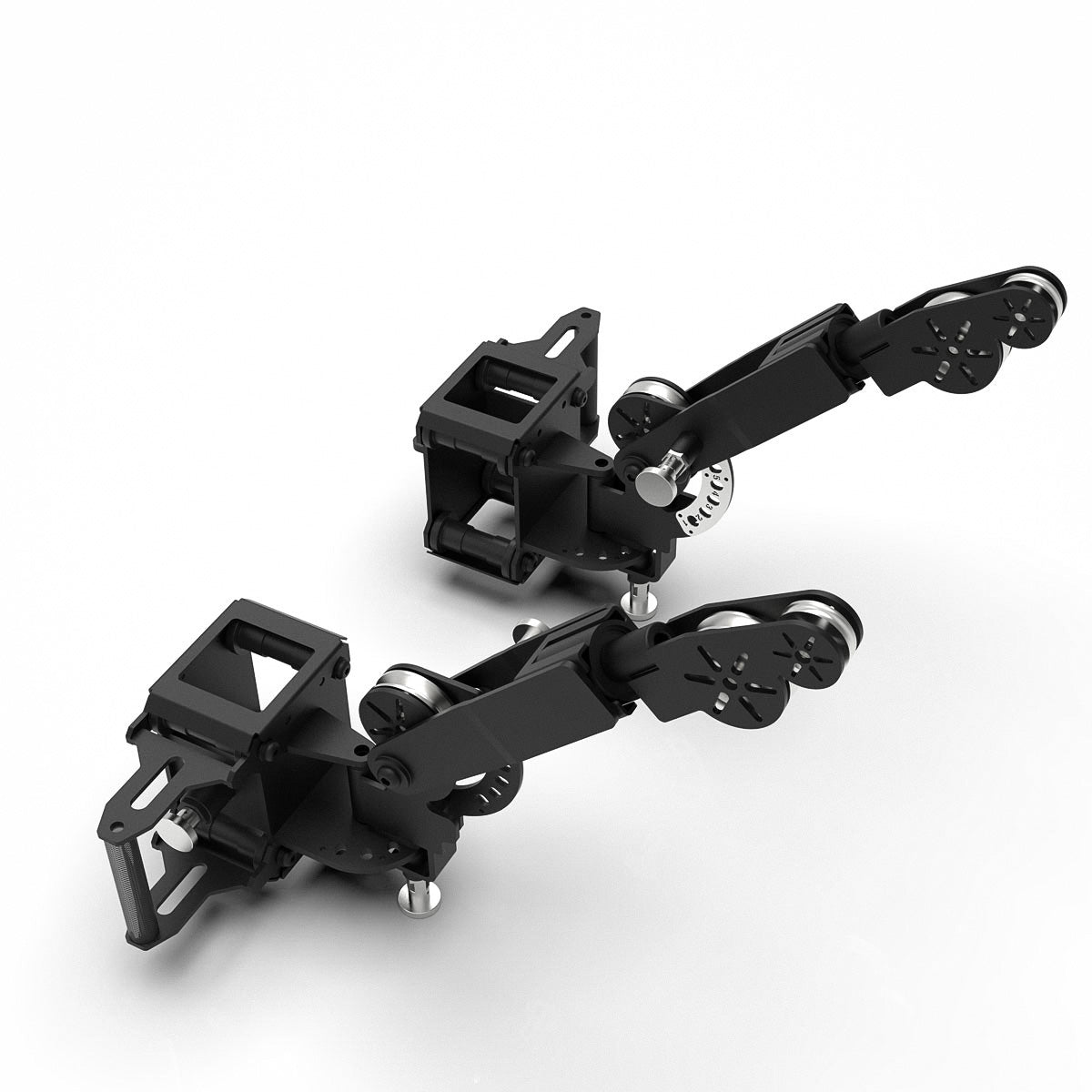

The 1RM Ebony Pivot Arm Cable Attachment adds a new dimension to cable training by allowing resistance to move with the lifter, not against them. Designed to mount directly to the 1RM Ebony 75×75mm Cable Machine front uprights, these pivot arms create smooth, adjustable cable paths that adapt to pressing, pulling and rotational movements.
Each arm pivots 180 degrees horizontally and 90 degrees vertically, giving you the freedom to set the cable angle exactly where you need it — or let it move dynamically through the range. The horizontal movement can be locked in place for fixed-path training or left free-floating to follow natural movement patterns.
Built from heavy-duty steel with a matte black powder-coated finish, the system uses sealed-bearing aluminium pulleys for smooth cable travel and long-term durability. The included extended Japanese steel cable replaces the standard Ebony cable, providing the extra length required for full pivot arm travel without binding or restriction.
This attachment is ideal for lifters and facilities looking to expand the capability of their rack-based cable systems without adding a separate machine footprint.
What This Is Used For
The 1RM Ebony Pivot Arm Cable Attachment is designed for:
- Pressing movements with a more natural arc
- Rows and pulling patterns that follow body mechanics
- Chest flys and cable presses without fixed tracks
- Rotational and anti-rotation core work
- Unilateral training with adjustable cable angles
By allowing the pulley to move as you move, pivot arms reduce awkward joint positions and open up training options that feel closer to free-weight movement — while still benefiting from cable tension.
Construction & Features
- Frame: 60mm × 60mm x 3mm steel construction
- Finish: Matte black powder-coated steel
- Pulleys: Sealed-bearing aluminium pulleys (main cable path)
- Trolley rollers: Heavy-duty polymer rollers with ball bearings
- Pivot pulley: Fully sealed ball bearing rotation
- Pins & guards: Stainless steel
- Movement range:
- 180° horizontal rotation
- 90° vertical adjustment
- Horizontal travel: Lockable or free-moving
- Cable: Extended Japanese steel cable (included)
- Compatibility:
- Fits 75 × 75mm uprights
- 27mm hole size
Specifications
- Sold as: Pair (left & right)
- Mounting: Cable Machine Upright Mounted
- Cable system: Single-pulley per arm
- Upright compatibility: 75×75mm, 27mm pin
- Use rating: Home and commercial gyms
Compatible With
We are unable to say for certain if this will fit with another brand's rack. It's designed to work with the 1RM uprights which are 75x75mm and uses 27mm holes
Frequently Asked Questions
Do these replace a standard functional trainer?
No — they expand what your rack-based cable system can do. They’re ideal if you want more movement freedom without adding another machine.
Can I lock the arms in place?
Yes. The horizontal movement can be locked wide, narrow, or left free to move during the lift. The vertical movement can only be locked in place.
Is a cable included?
Yes. An extended cable is included to replace the standard Ebony cable and allow full pivot arm travel.
Will these fit other racks?
They are designed for 75×75mm uprights with 27mm holes. Always check your rack specifications before purchasing.
Need Help?
If you’re unsure whether these pivot arms will suit your rack or cable setup, contact our team and we’ll confirm fitment before you buy.
Call 03 9462 3943, email info@littleblokefitness.com.au, or visit our Melbourne showroom for expert advice.
