Pre Order Expected Early August | 1RM Obsidian Double Sided Compact Power Rack with Storage | Commercial

At the core of many sports’ strength and conditioning programs, lifting cages have become essential to nearly all strength programs.

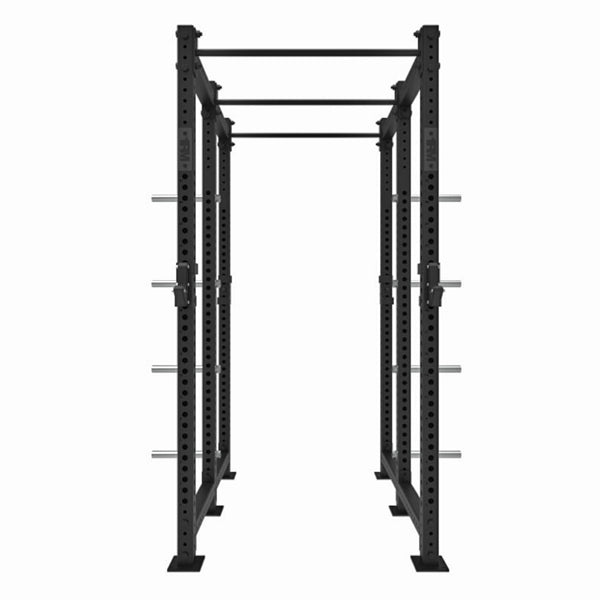

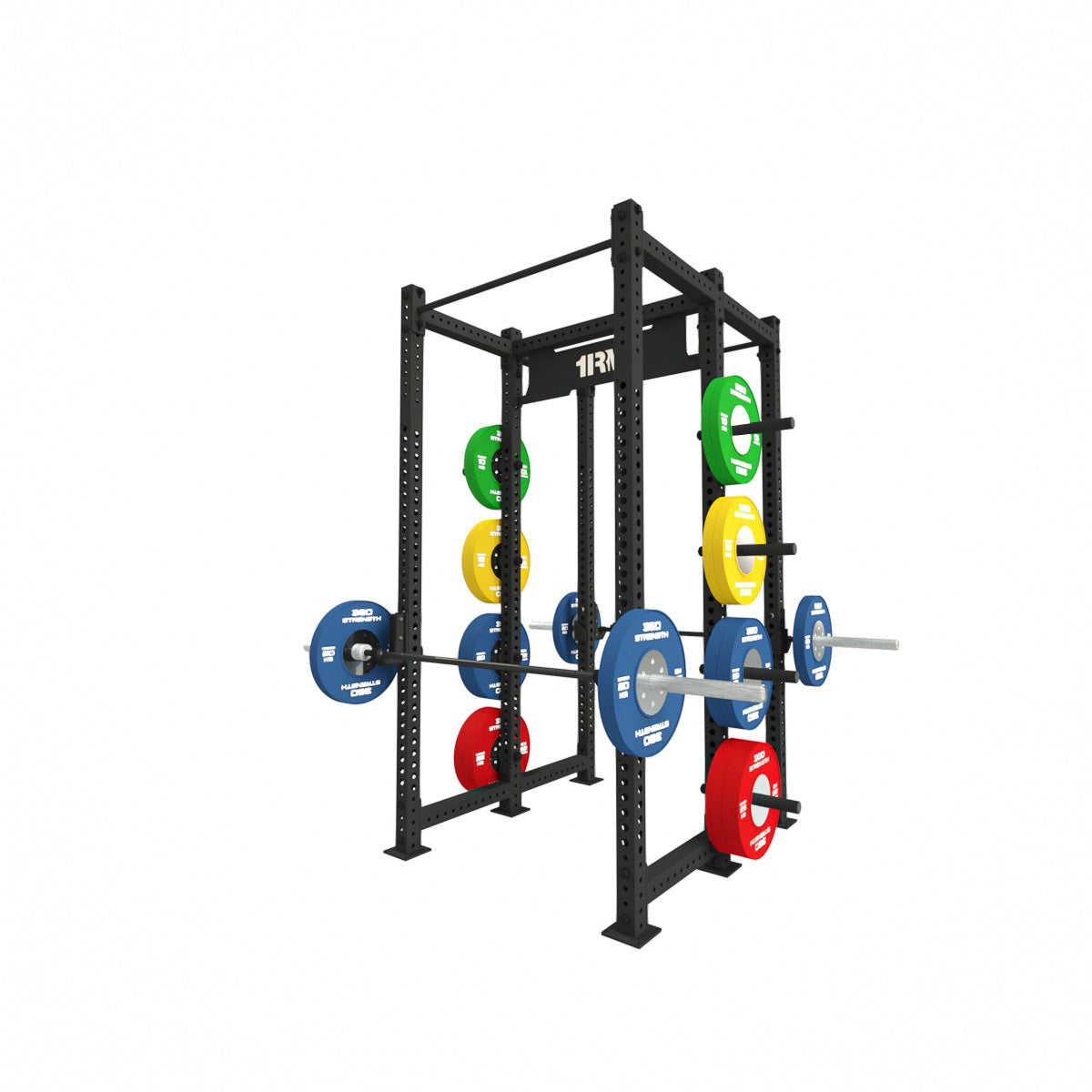

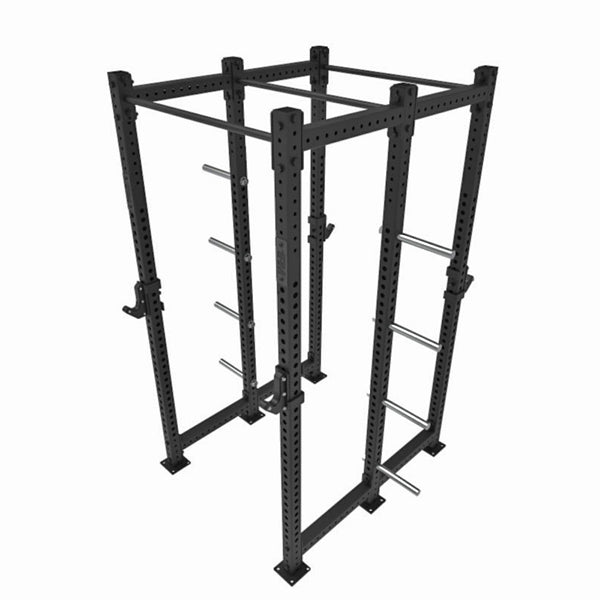

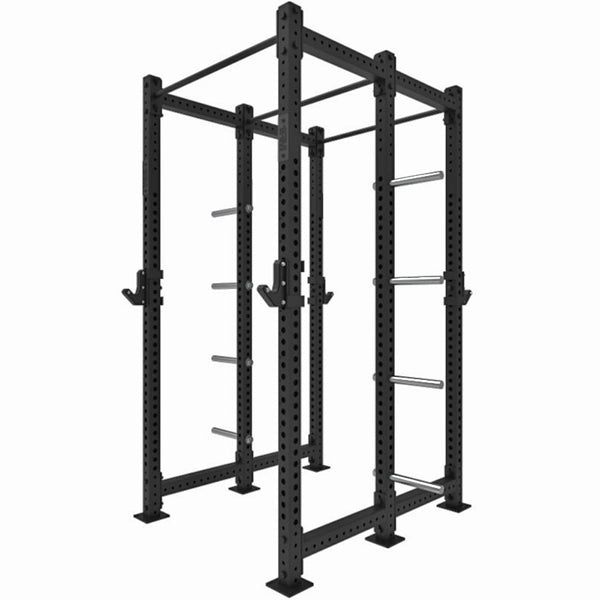

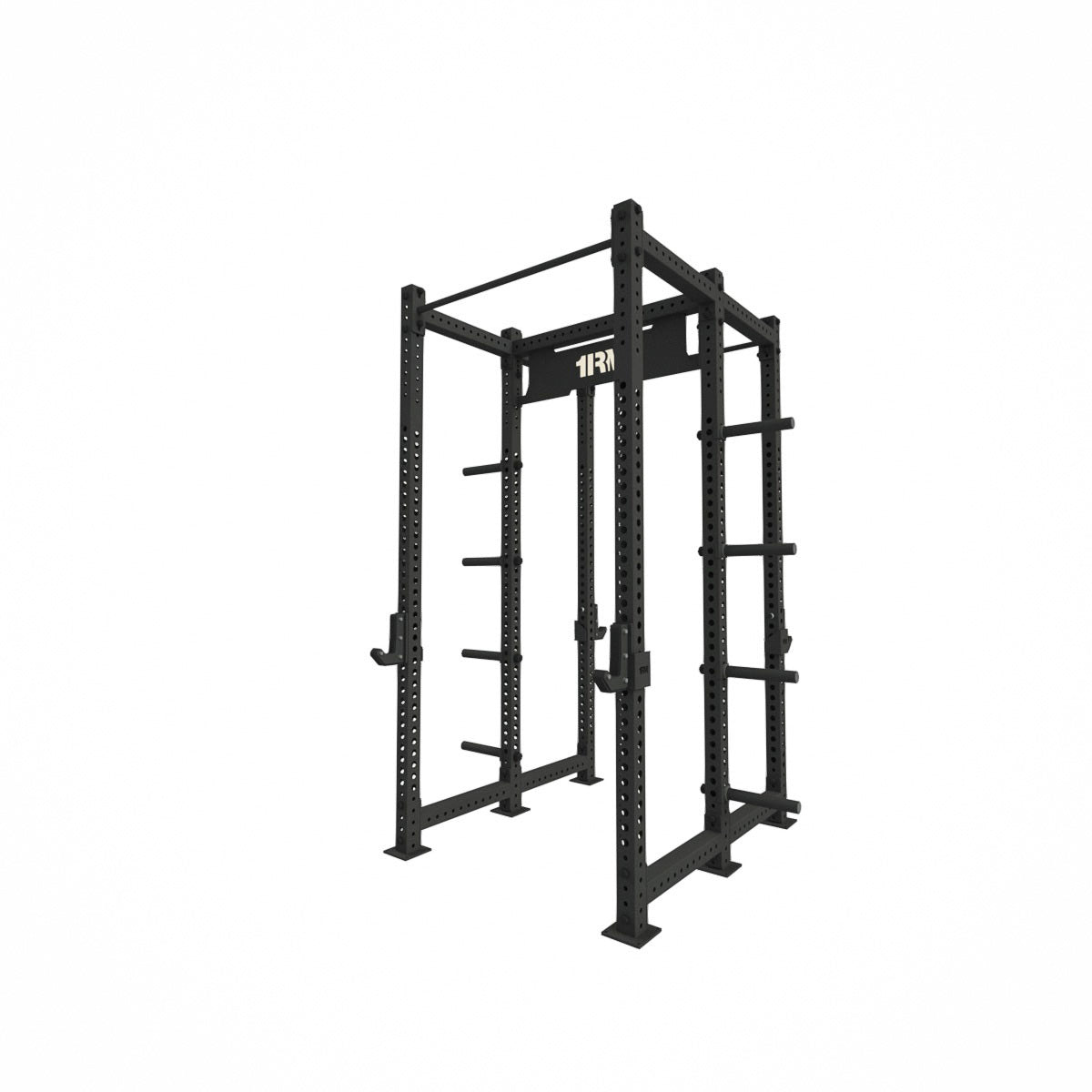

1RM are proud to offer the Obsidian Double Compact Power Rack with storage, a compact double sided commercial power rack designed for small spaces and maximum functionality, including 2 pairs of elite j-hooks, and 8 x weight plate storage pegs. Available in 2235mm or 2510mm heights, it's designed to withstand the use (and abuse) of even the busiest gyms.

Designed for garage gyms or facilities who need to maximum their available floor space, this shallow rack has a small footprint, saving you valuable floor space without compromising on functionality. With 11-gauge (3mm), 75mm x 75mm steel, 10mm thick foot plates on every upright and 8mm end plates on every chin bar and crossmember, this double rack is perfect for any environment where high quality is demanded and space is a premium - from studios, apartments, home gyms and club and school weight rooms to full function strength and conditioning facilities.

As a part of the modular 1RM range, the system is customisable to suit all needs. Upgrade from a single to a multi-grip chin-up bar, add a set of spotter arms to create a second external lifting area, add dip horn to further extend the rack's functionality, or add some barbell storage.

If you need multiple lifting areas, combine multiple racks with our 1.68m bridging chin-up bars to build a full rig system. While shallow, the 2.51m height of the 1RM Compact Double Commercial Power Rack increases the versatility of the rack. If you need more height, upgrade to 2.7m or 3.6m uprights on the front or back and create a ring station within the rack.

Specifications:

• Available in 2235mm and 2510mm height

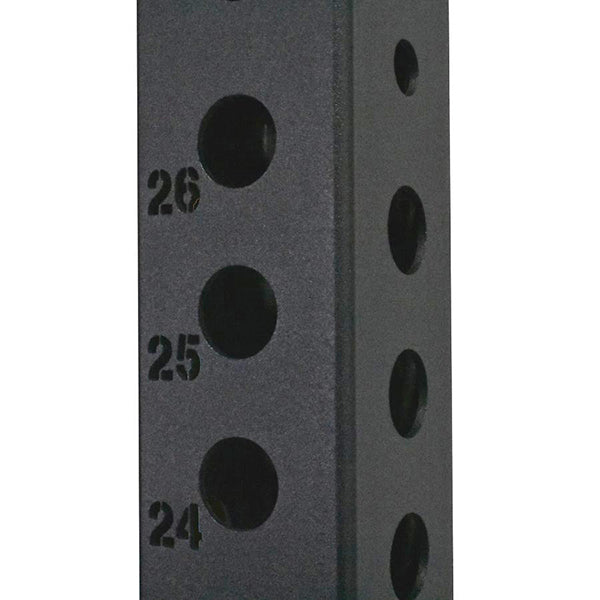

• 75x75mm, 11 gauge (3mm) steel uprights with laser cut numbers and 10mm foot plates
• 5mm thick, 32mm outer diameter Chin-up Bars with 8mm end plates
• 75x75mm, 11 gauge (3mm) steel tube crossmembers with laser cut holes and 8mm end plates

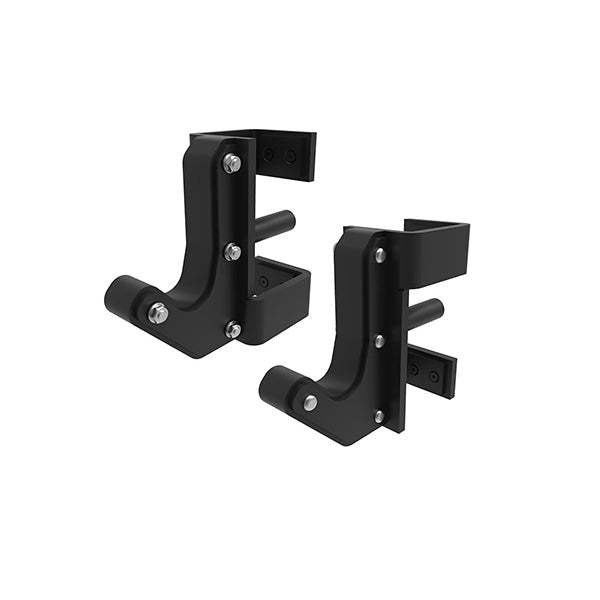

• 2 x PAIR j-hooks
• 8 weight plate storage pegs
• 236kg total unit weight
• All structural bolts are included (excluding any bolts required to mount to floor)

Dimensions:

• Available in 2235mm and 2510mm height
• Assembled dimensions - 2235mm: 1812 (W) x 1443 (D) x 2235 (H) mm
• Assembled dimensions- 2510mm: 1812 (W) x 1443 (D) x 2510 (H) mm
• *Width (without utility pegs): 1212mm

Other Considerations:

Space Required. For the 2510mm tall model, please note you need a minimum ceiling clearance of 2560mm for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead functionality.

For the 2235mm model, please note you need a minimum ceiling clearance of 2310mm for installation.

Allow at least 1m clearance either side for comfortable access when changing barbell plates.

Installation. While not essential, it is recommended that this 1RM system be mounted to the floor. The uprights can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each upright requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring. All bolts required to attach uprights to chin-up bars, crossmembers and other accessories are included.

Alternatively, extension feet can be purchased for the front of the rack.

1RM Systems

Every component from the 1RM System is CAD designed, laser cut and robot welded to ensure you’ll get the quality you need for your space – whether a single cell, a power cage or a ten cell fitout. With three different height uprights, heavy duty custom j-hooks and spotters, 4 styles of chin-up bars and over 60 accessories to choose from, including cable machines and smith machines  – you’re sure to find a configuration to suit.

The system is fully modular – meaning that you can start with one cell and add to this over time as your needs change. There are countless configurations you can build and customise to suit your space, budget & training requirements.

Need More?

If you're looking for accessories, try our accessories page. If you can’t find what you’re after, need a different or custom configuration, installation or would just like to chat about the best configuration for you, give us a ring on 03 9462 3943 or email us at info@littleblokefitness.com.au.
