Pre Order Expected Early Jan | 1RM Ebony Smith Functional Trainer Rack

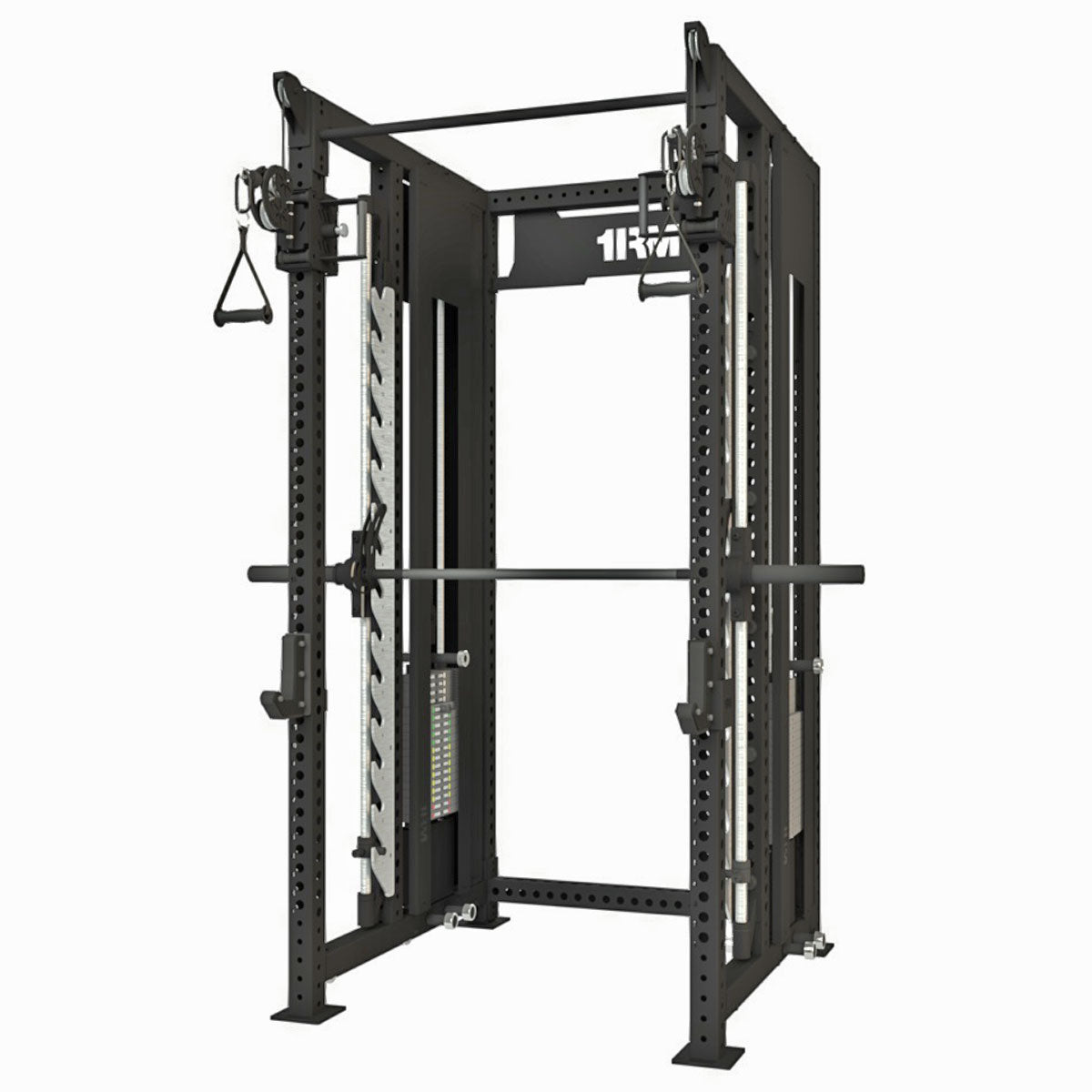

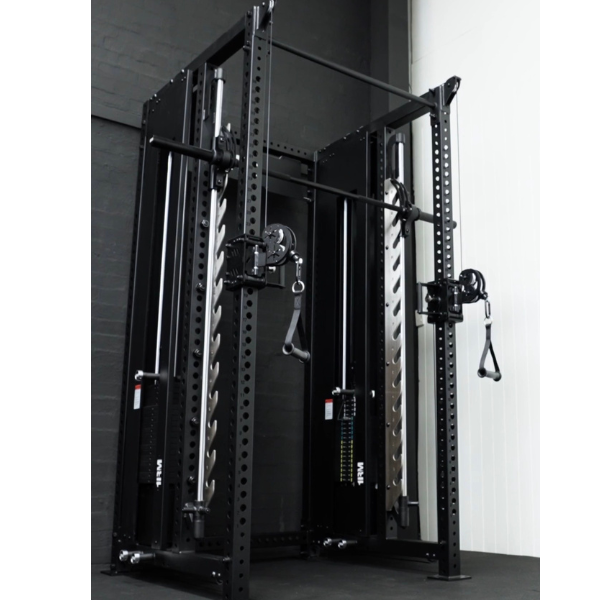

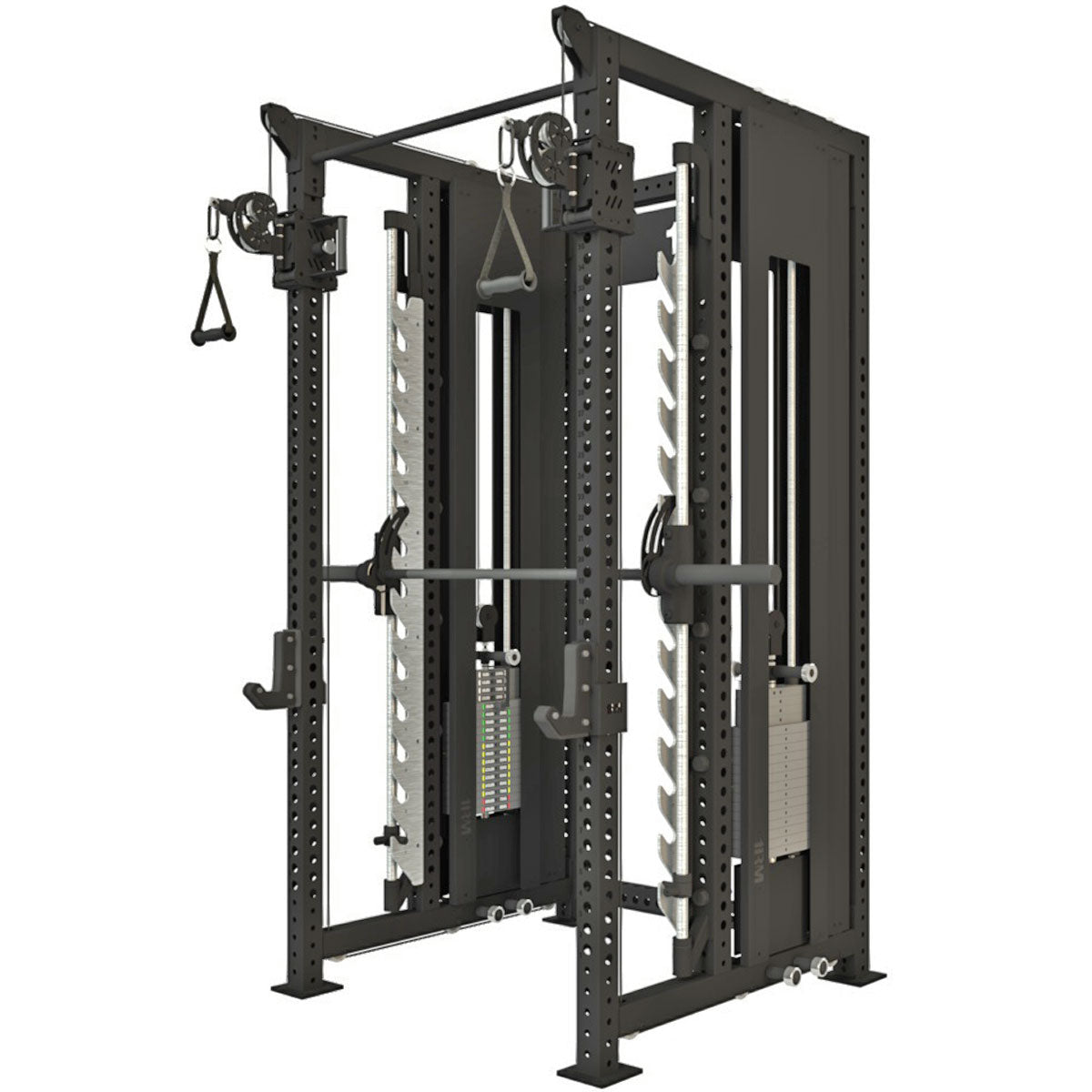

The 1RM Ebony Smith Functional Trainer Rack is a commercial-grade training system built around the 1RM modular platform. This configuration combines a free-weight squat rack, dual-stack functional trainer and heavy-duty Smith machine into a single, compact frame - giving you barbell work, cables and guided lifting without moving between stations.

This setup is designed for serious training spaces where space, safety and flexibility matter. You can squat, press, row, pull, lunge and train accessories on the rack side, then move straight to cables or Smith work without breaking flow. It’s a layout that works just as well in a high-end home gym as it does on a busy commercial floor.

Unlike fixed multi-gyms, this is built on a true modular rack system. Every upright, crossmember, stack, Smith rail and attachment is part of the 1RM ecosystem - meaning this configuration is just one of many possible builds. You can add extra bays, heavier stacks, lat pulldowns, jammer arms, storage, or reconfigure the frame entirely as your gym evolves. OIver 40 compatible accessories are available to expand, adapt and evolve the system over time.

This Configuration Includes:

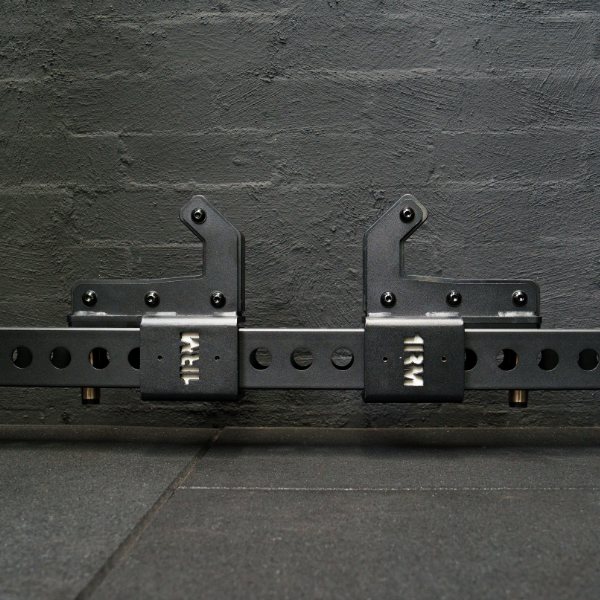

• Squat rack with premium J-hooks
• Dual 2:1 functional trainer (80kg or option to upgrade to 130kg stacks)
• Integrated Smith machine (400kg rated)
• 75×75mm commercial-grade uprights
• Straight Chin-up bar
• Nylon Stirrup handles
• Storage Crossmember
• Full hardware kit

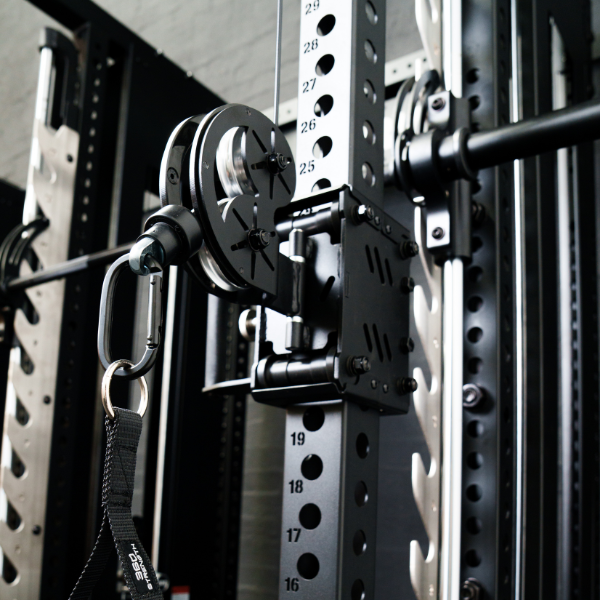

The Functional Trainer Features

• 2 × 80kg or 130kg precision-machined weight stacks
• 2:1 pulley ratio
• One-hand height adjustment
• Heavy-duty aircraft-grade cables
• Sealed bearing aluminium pulleys
• Magnetic selector pins with tether
• Band peg attachments
• 32mm chin-up bar
• Premium J-hooks
• Numbered Uprights

Smith Machine Features

• Aeronautical grade aluminium slider and bar ends
• Tempered Hard Chrome Guide Rods
• Japanese Linear Bearings
• 20kg Black Hard Chrome Plated Bar
• Laser cut, numbered hard chrome gun rack
• 75x75x3mm steel frame
• 8 plate storage pegs
• 400kg weight capacity


Construction and Finish

• Laser-cut and robot-welded
• Matte black textured powder-coated steel
• Commercial-grade hardware throughout
• Full commercial warranty

Specifications

• Assembled dimensions - 1822 (W) x 1212(D) x 2560 (H) mm


Modular & Customisable

This rack is built on the 1RM modular platform, which includes:

• Power racks & squat racks
• Rig systems
• Functional trainer modules
• Smith machine modules
• Lat pulldowns
• Storage systems
• Over 40 compatible accessories

That gives you unlimited possible configurations.

If this layout isn’t exactly right, we can adjust it. And if we can't build what you want from the 1RM modular range, we'll build you a bespoke solution.

Other Considerations:

Space Required.

For the 2510mm tall model, please note you need a minimum ceiling clearance of 2560mm for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead functionality.

Installation. It's recommended on this 1RM system that the uprights to be mounted to the floor. The uprights can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each upright requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.

All bolts required to attach uprights to chin-up bars, crossmembers and other accessories are included.

If it cannot be bolted to the floor, it is recommended that the 1RM stubby feet be purchased and installed to remove any hazard.
